시하스(SiHAS)

Features 시하스(SiHAS)

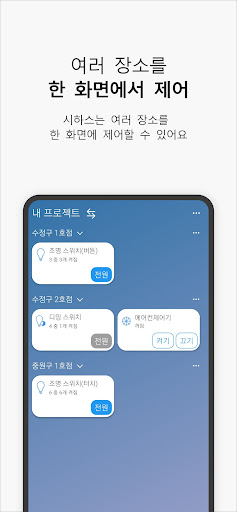

[ Sihas Customer Center ] https://sihas.co.kr/support[ Sihas Features ] - Remote management of home IoT devices is possible with a smartphone, and you can build a home IoT system safely and conveniently anytime, anywhere.
- Unlike other products, all products support WiFi, so there is no need to separately install a home server or home gateway, and you can use it if you have a home Internet router.
- It can be easily installed and used without any additional construction even in existing houses where a separate home network system is not built.
- There is no separate usage fee.
- App provides easy device registration and remote firmware upgrade function.
- Remote control of smartphone app via WiFi.
(Available for integration with SiHAS home IoT devices)[ Sihas IoT Products ]1.
ACM (Air Conditioning Controller) - Convenient product installation by using USB power - Installation expandability regardless of the air conditioner installation location through the built-in 4 high-power infrared IR remote controls - Air conditioner manual operation button and control status LED display - User remote control setting and control function (the number of buttons that can be registered, such as TV remote control: 20) - The built-in vibration sensor reflects the operation status of the air conditioner when installed on the air conditioner2.

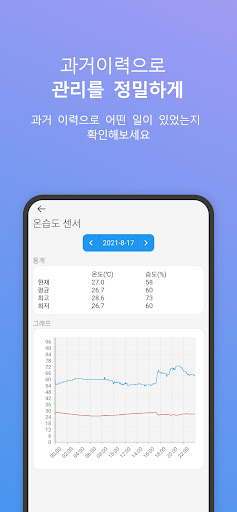

AQM (Air Quality Meter) - Indoor environment measurement: temperature, humidity, illuminance - Air quality measurement: fine dust (PM10), ultrafine dust (PM2.5), carbon dioxide (CO2), hazardous substances (TVOC) - Data monitoring and display target selection function through the built-in display (LCD or FND) - Alarm level setting for each item and current status display (good, normal, bad, very bad) - Real-time environment monitoring through smartphone app and past history monitoring through trend graph - Various models available: desk type and wall type (AQM-300WM) and large-capacity display panel version for public institutions (AQM-300WP)3.
CCM (Smart Outlet) - ON/OFF power control - Reservation control through scheduling (weekly, daily) - Standby power difference function, overload setting and alarm function - Power monitoring function (voltage, current, power, power factor, accumulated power) - Power usage monitoring function (today, previous day, current month, previous month, previous month)4.
DCM (Smart Door Lock Controller) - Remote control function by smartphone app - Password setting function to enhance security - Wide power input range (DC12V~DC24V) - Manual control button and door lock wireless control status LED display5.
GCM (Smart Gas Circuit Breaker) - Stable power supply using wired constant power - Automatic gas shutoff in case of power failure and fire through AA backup battery - Easy installation due to mechanical compatibility with most manual valves - Gas valve status check and lock function - Voice guidance and alarm function, battery remaining display function6.
HCM (Smart Generation Heating Regulator) - Full-touch switch, backlight and large-screen LCD - Supports both valve control type and communication type - In case of valve control type, both 2-wire and 3-wire type can be used (built-in selection switch) - In the case of communication type, one-to-one compatibility with existing major products such as Honeywell and Siemens is possible (request to head office) - Control items: heating ON/OFF, current temperature, set temperature, outdoor temperature, reservation setting, valve status, alarm status, etc.
- Setting items: room number setting, setting upper/lower limit, outing set temperature, temperature compensation, temperature range, valve type, backlight, etc.7.
OCM (Smart Human Body Detector) - Built-in 360-degree human motion detection sensor - Detection setting function for each direction (detection of adjacent rooms and passages is possible) - Air conditioner control function by IR transmitter (Samsung and LG air conditioners, etc.) - Lighting and other electric heat control functions by relay output linkage - Day and night operation condition setting function by illuminance sensing and interlocking8.
SDM (Smart Dimming Switch) - Individual and global ON/OFF, individual and global detailed brightness and color dimming, sleep function - SCENE setting and execution function to create various atmospheres depending on the situation - Various types of switches (1 to 6) and dimming, etc., can be used simultaneously and separately - Provides construction convenience and user convenience by dualizing wireless communication such as wireless dimming dedicated communication (2.4GHz) and WiFi for smartphones - Wireless pairing function between simple switch and dimming LED and power saving function by shutting off power when OFF9.
STM (Smart Light Switch) - Can be used immediately by replacing the existing tumbler switch (easy installation) - Selectable power drive method (2-wire type) and direct power drive method (selection switch) - Guaranteed semi-permanent switching life due to electronic switch control - Time switch (auto OFF) setting and weekly and daily schedule function - Display the current status of each light switch (ON-RED, OFF-BLUE) - Individual switch and overall switch batch control function (Double 4-port, 6-port only) - Various models are available according to the number of circuits (single 1-3, double 4, 6)10.
TCM (Smart Electric Heating Regulator) - Electric ondol, film heating, and other electric heating control by large-capacity relay - Various control functions (built-in temperature sensor control, external temperature sensor control, timer ratio control) - Current temperature display, set temperature display, sensor error alarm, lock function, communication status - Local and remote parameter setting function (actual number setting, temperature correction, setting range, temperature range, etc.) - Wheel dial, large-screen LCD and backlight setting function - Wired communication (RS-485) communication interface (CU-Net/Modbus)11.
RXM (Smart Universal Input/Output Controller) - Rugged industrial case and easy product attachment and connection - I/O port: digital output 2 ports, digital input 2 ports - 20A large capacity relay output (including manual operation lever) - Display status: I/O status LED and communication LED
